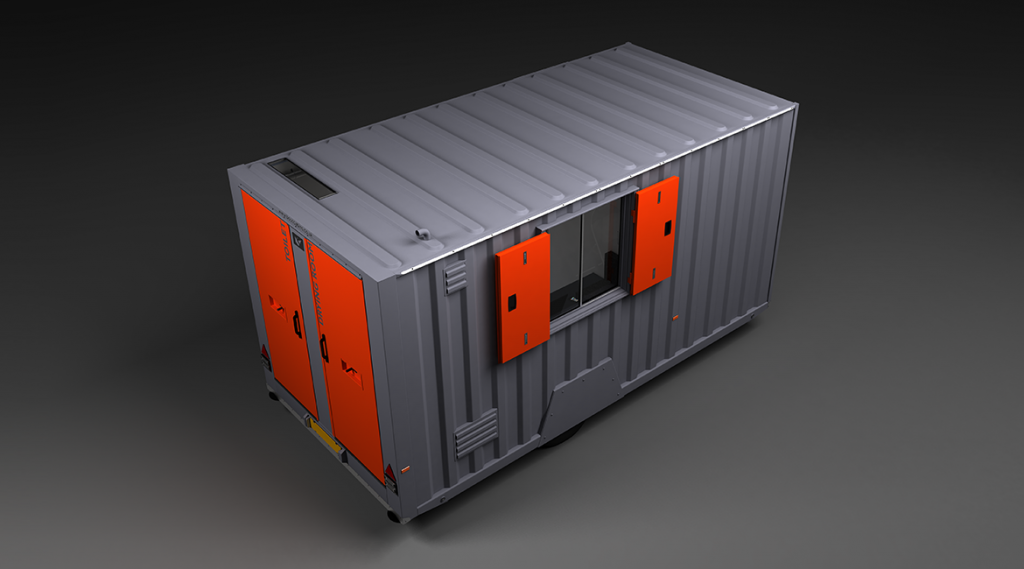

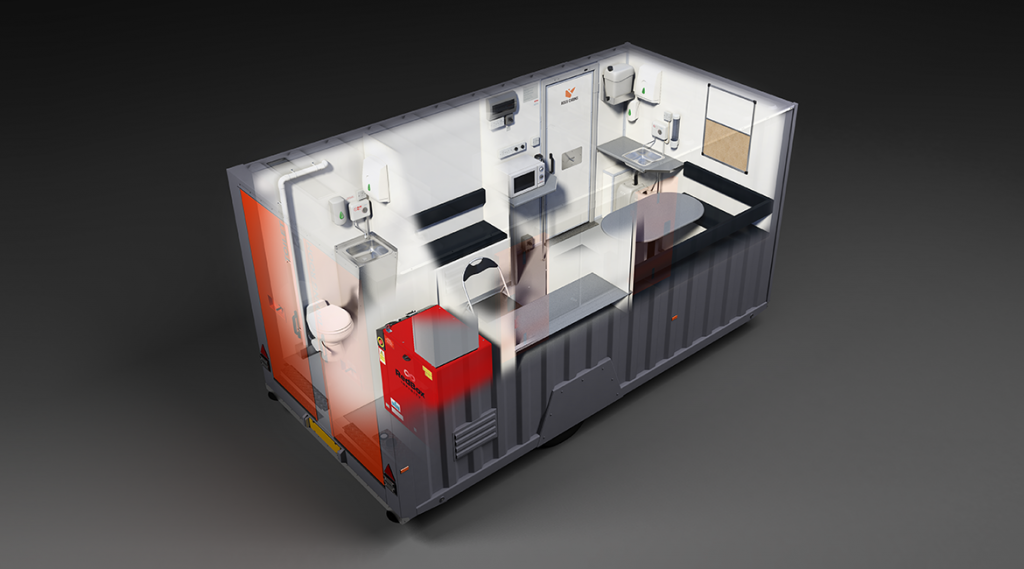

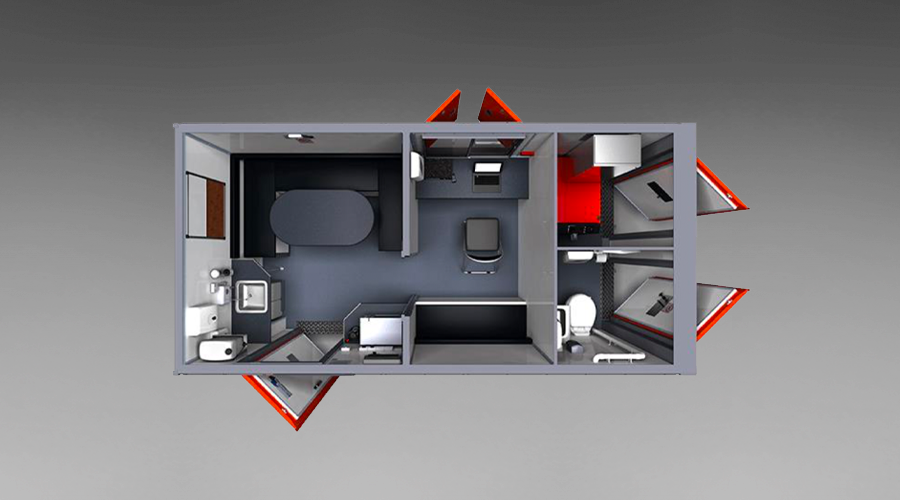

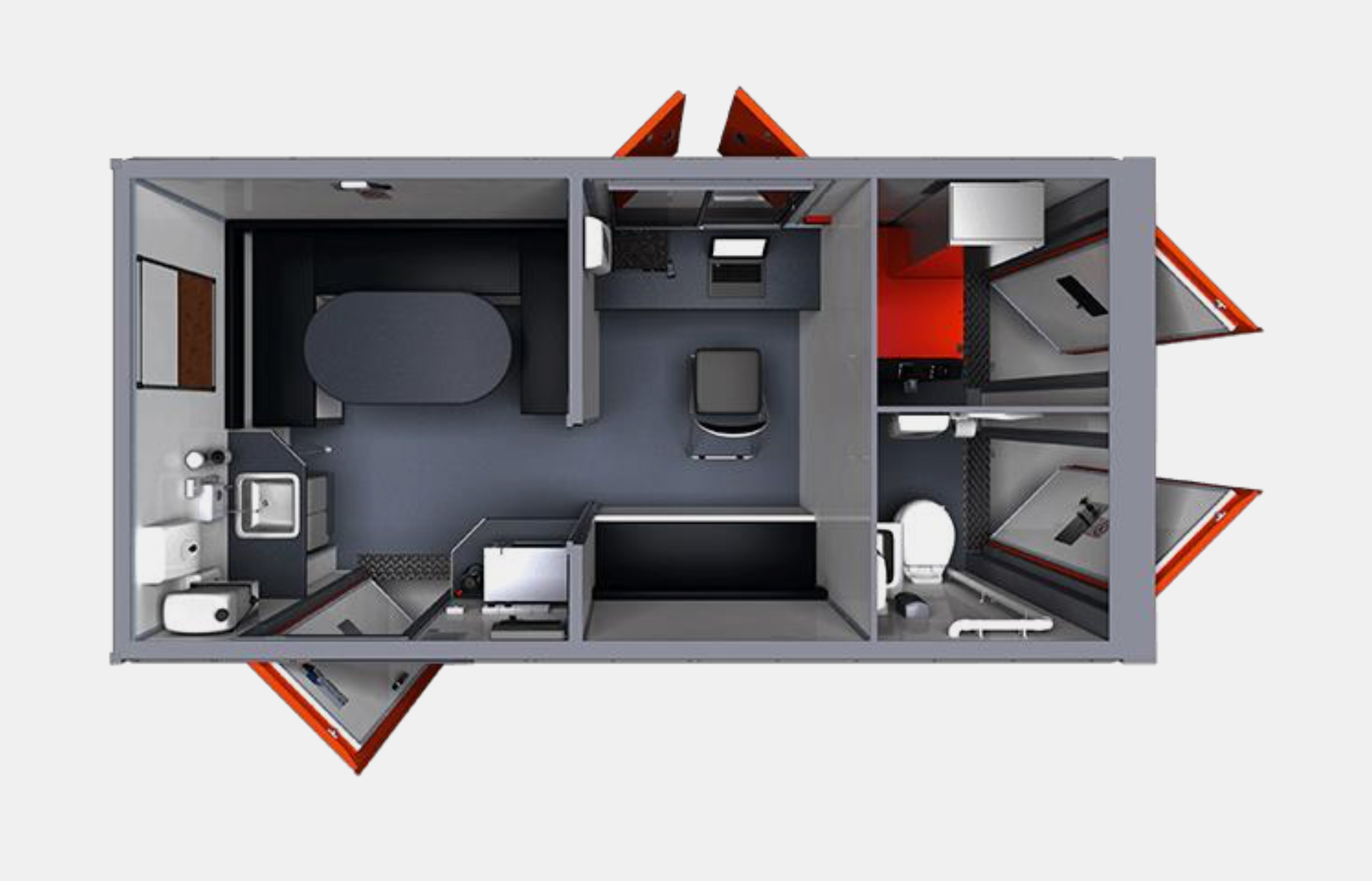

Introducing the Ultimate Flexibility: The Combined Canteen and Office Unit.

With the versatility of a canteen with an office area, our unit offers unmatched flexibility for you.

Canteen

  • Bench seating for up to 6 people with under seat storage Fixed Table.
  • Low Level Plinth Heater.
  • Air blown 12v heating system.
  • 12v LED lighting and USB charging points.
  • 240v invertor power socket.
  • Clean and waste water containers with 25l capacity.
  • Stainless steel forearm sink with hot wash over.
  • Worktop area for food preparation.
  • Microwave and kettle included as standard.
  • Cabin on/off isolation switch for ease of operation.
  • CO alarm.
  • Consumer unit with RCD and MCB protection.
  • Solar panel.

Toilet

  • Recirculating chemical toilet.
  • Sink with hot-wash.
  • High-security skylight.
  • PIR LED light.

Generator / Drying Room

  • Diesel generator with 2000 hour service intervals.
  • Tubular heater.
  • Coat hooks.

Office

  • Desk Space with storage shelves under.
  • Four double sockets.
  • Four office chairs.

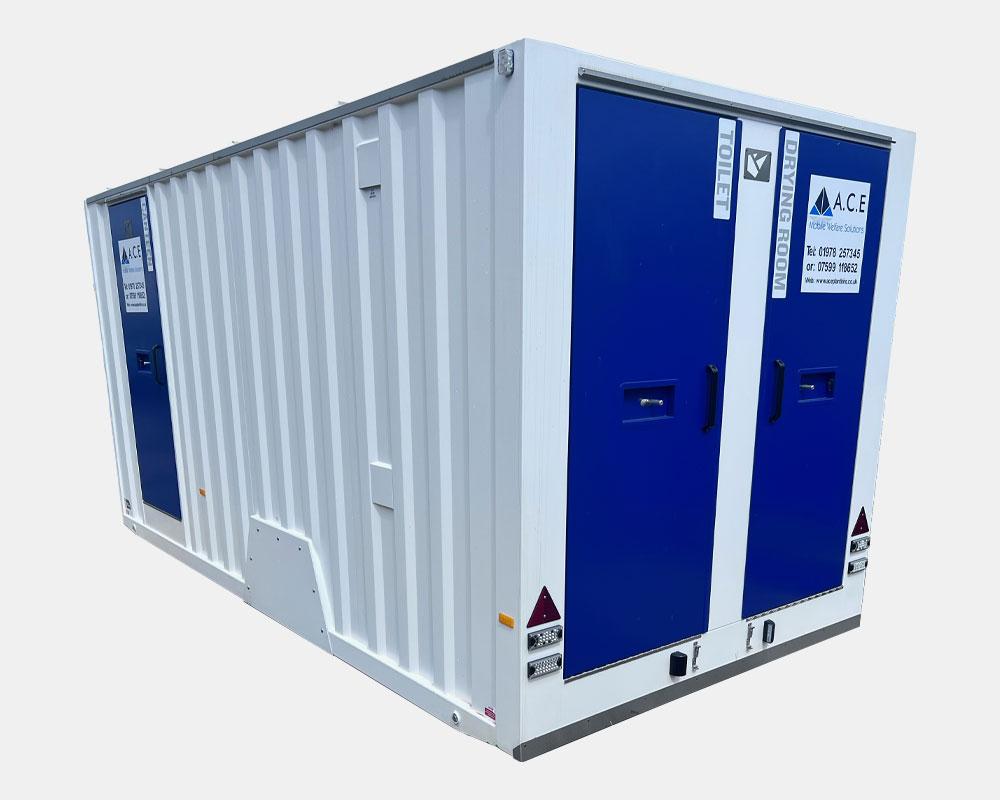

ACE Welfare Units: 16ft Cabin

Specification

AttributeMeasureAttributeMeasure
Unit Length4846mmUnit Width2300mm
Unit Height2398mmTowing Length5988mm
Towing Height2756mmInternal Height1990mm
Internal Width2130mmNet Weight1935kg
Diesel Tank58LFresh Water25L
Waste Capacity25LToilet Capacity225L
Drinking Water25LFuel Tank56L
